Cable Reeling System

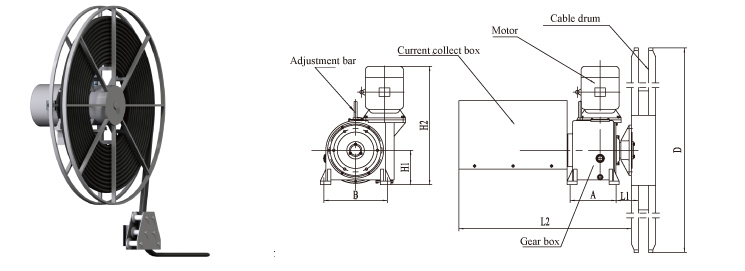

Leitai MCR Series Motorized Cable Reeling System

Feature

MCR Motorized Cable reel system are the perfect solution for managing long lengths of heavy cable in very demanding industrial applications.  We can offer Optimal corrosion protection: Flanges and reel drum are manufactured from hot dip galvanized steel in tough environments.
Applications：

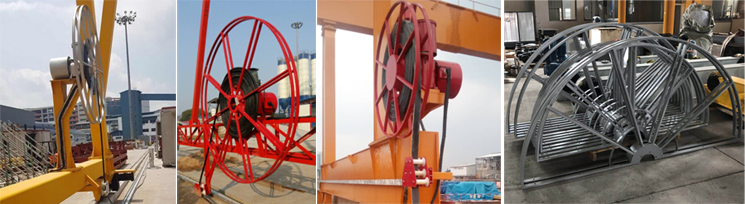

1.  Ship-to-shore (STS) cranes
2.  Rail mounted gantry (RMG) cranes
3.  Shipbuilding cranes
4.  Gantry cranes,  Overhead cranes
5.  Grabs or magnets, Transfer cars

ITEM MCR10 MCR20 MCR60 MCR90 MCR110 MCR150
Winding torque (Nm) 100 250 580 750 1000 1250
Cable Size 4×6 4×10 4×16 4×16 4×25 4×35 4×35 4×50 4×70 4×50 4×70 4×95 4×70 4×95 4×120 4×120 4×150 4×185
Cable Length 80 60 50 90 70 60 125 100 80 150 120 100 180 150 130 160 150 130
Winding speed (m/min) automatic tracking with speed ≤50m/min
Power of motor (kw) 0.75 1.1 1.1 1.5 2.2 3 3 4 4 5.5 7.5 7.5
Reduction ratio 56 63 71 65 63 71
Max.Cable Weight (kg) 80 240 560 720 960 1200

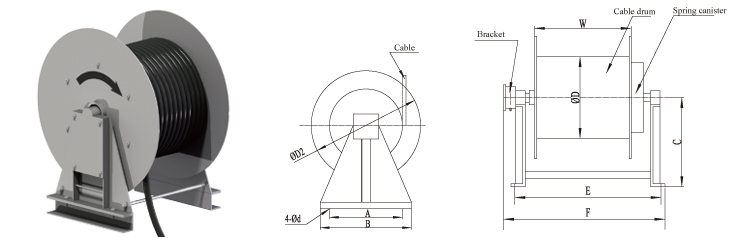

SCR Spring Cable Reel

Series A
(mm) 		B
(mm) 		C
(mm) 		D1
(mm) 		D2
(mm) 		d
(mm) 		E
(mm) 		F
(mm) 		W
(mm) 		Weight
(kg)
SCR 10m
Series 		1 250 300 300 360 500 14 450 600 320 73
2 485 650 350 78
SCR 15m,
20m
Series 		1 300 360 400 500 700 15 440 600 250 95
2 490 650 300 100
3 560 720 250 115
4 610 770 300 120
5 720 880 300 150
SCR 25m,
30m
Series 		1 400 460 450 600 800 18 525 675 300 120
2 641 795 150
3 751 905 180
4 892 1045 212
5 500 580 550 800 1000 18 641 795 300 185
6 751 905 212
7 892 1045 240
8 1005 1160 268
