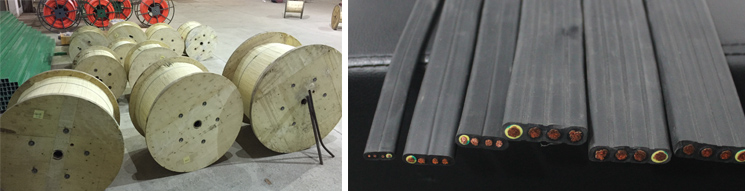

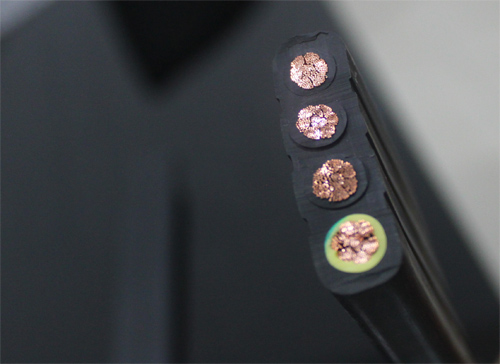

LEITAI YFFB Flat Cable Applications:
YFFB Series Cable is special designed for frequent motion and flexing. This cable can be used for festoon systems, power tracks, cable tenders, cranes and hoists.Feature:
Sheath: Special polychloreprene (Butadiene-Acrylonitrile Rubber) which is flame resistance and self-extinguishing.
Conductor: Superfine Soft Bare Copper which purity can reach 99.999%.
Insulation: Special polychloreprene (Butadiene-Acrylonitrile Rubber) or PVC
| Model | Qty of Cores |
Section of Cores mm2 |
Width of Cable mm |
Thickness of Cable mm |
Weight kg/km |
| YFFB | 4 | 1.5 | 16.3 | 5.8 | 198.4 |
| YFFB | 4 | 2.5 | 18.7 | 6.6 | 268.4 |
| YFFB | 4 | 4 | 21.9 | 7.3 | 367.7 |
| YFFB | 4 | 6 | 26.9 | 8 | 507.6 |
| YFFB | 4 | 10 | 34.5 | 9.7 | 784.1 |
| YFFB | 4 | 16 | 38.5 | 10.7 | 1074 |
| YFFB | 4 | 25 | 47 | 12.8 | 1575 |
| YFFB | 4 | 35 | 56.6 | 15.2 | 2245 |
| YFFB | 6 | 1.5 | 23.3 | 5.8 | 282.8 |
| YFFB | 6 | 2.5 | 26.9 | 6.6 | 386.5 |
| YFFB | 6 | 4 | 31.7 | 7.3 | 534.2 |
| YFFB | 6 | 6 | 38.7 | 8 | 737 |
| YFFB | 6 | 10 | 50.1 | 9.7 | 1148 |
| YFFB | 6 | 16 | 56.1 | 10.7 | 1580 |
| YFFB | 6 | 25 | 68.6 | 12.8 | 2322 |
| YFFB | 6 | 35 | 82.6 | 15.2 | 3311 |
| YFFB | 8 | 1.5 | 29.3 | 5.8 | 358.8 |
| YFFB | 8 | 2.5 | 36 | 6.6 | 513.3 |
| YFFB | 8 | 4 | 40.5 | 7.3 | 690 |
| YFFB | 8 | 6 | 48.9 | 8 | 947.7 |
| YFFB | 8 | 10 | 63.9 | 9.7 | 1486 |
| YFFB | 8 | 16 | 71.9 | 10.7 | 2057 |
| YFFB | 8 | 25 | 88.2 | 12.8 | 3031 |
| YFFB | 10 | 1.5 | 35.3 | 5.8 | 434.7 |
| YFFB | 10 | 2.5 | 41.3 | 6.6 | 603.3 |
| YFFB | 10 | 4 | 49.3 | 7.3 | 845.9 |
| YFFB | 10 | 6 | 59.1 | 8 | 1158 |
| YFFB | 10 | 10 | 77.7 | 9.7 | 1824 |
| YFFB | 10 | 16 | 87.7 | 10.7 | 2535 |
| YFFB | 12 | 1.5 | 41.3 | 5.8 | 51.7 |
| YFFB | 12 | 2.5 | 48.5 | 6.6 | 711.8 |
| YFFB | 16 | 1 | 47.1 | 4.8 | 475.5 |
| YFFB | 16 | 1.5 | 54.3 | 5.8 | 671 |
| YFFB | 16 | 2.5 | 63.9 | 6.6 | 938.3 |
| YFFB | 20 | 1 | 58.3 | 4.8 | 587.9 |
| YFFB | 20 | 1.5 | 67.3 | 5.8 | 831.4 |
| YFFB | 20 | 2.5 | 79.3 | 6.6 | 1165 |
RVV Rouble Cable Applications:
RVV Series is special designed for crane power supply, which is flame resistance and self-extinguishing
Feature:
Sheath: Rubber or PVC for option
Conductor: Superfine Soft Bare Copper which purity can reach 99.999%.
Insulation: Special Polychloreprene (Butadiene-Acrylonitrile Rubber) which is Oil and flame resistance and self-extinguishing
| Model |
Qty of Cores * Section of Cores mm2 |
Rated Voltage |
Outer Dimensionr (mm) |
Weight (kg/km) |
| RVV | 2×1.5 | 300/500V | 7.8 | 76 |
| RVV | 2×2.5 | 300/500V | 9.6 | 115 |
| RVV | 3×1.5 | 300/500V | 8.5 | 105 |
| RVV | 3×2.5 | 300/500V | 10.1 | 157 |
| RVV | 4×2.5 | 300/500V | 10.9 | 197 |
| RVV | 4×4 | 300/500V | 12.8 | 284 |
| RVV | 4×6 | 300/500V | 15.2 | 375 |
| RVV | 4×10 | 300/500V | 19 | 661 |
| RVV | 4×16 | 300/500V | 21.6 | 929 |
| RVV | 4×25 | 300/500V | 27.2 | 1443 |
| RVV | 4×35 | 300/500V | 31.5 | 1837 |
| RVV | 4×50 | 600/1000V | 36.6 | 2557 |
| RVV | 4×70 | 600/1000V | 40.8 | 3403 |
| RVV | 4×75 | 600/1000V | 41.3 | 3584 |
| RVV | 4×95 | 600/1000V | 46.6 | 4540 |
| RVV | 7×1.5 | 300/500V | 11.4 | 218 |
| RVV | 7×2.5 | 300/500V | 13.4 | 319 |
| RVV | 7×4 | 300/500V | 15.6 | 447 |
RVV1/RVV2 Pendent Cable
Applications:
RVV1/RVV2 Series Pendent Cable with one or two steel wire is special designedfor pendent control which is tensile resistance and long service life.
Feature:
Sheath: Special Polychloreprene (Butadiene-Acrylonitrile Rubber) which is flame resistance and self-extinguishing
Conductor: Superfine Soft Bare Copper which purity can reach 99.999%.
Insulation: Special Polychloreprene (Butadiene-Acrylonitrile Rubber) which is Oil and flame resistance and self-extinguishing
| Model |
Qty of Cores * Section of Cores mm2 |
Rated Voltage |
Outer Dimensionr (mm) |
Weight (kg/km) |
| RVV1 / RVV2 | 4×1.5 | 300/500V | 14.0 / 18.4 | 193 / 203 |
| RVV1 / RVV2 | 4×2.5 | 300/500V | 16.6 / 20.9 | 279 / 326 |
| RVV1 / RVV2 | 5×1.5 | 300/500V | 15.0 / 19.3 | 227 / 265 |
| RVV1 / RVV2 | 5×2.5 | 300/500V | 17.9 / 22.2 | 331 / 379 |
| RVV1 / RVV2 | 6×1.5 | 300/500V | 16.1 / 20.4 | 264 / 303 |
| RVV1 / RVV2 | 6×2.5 | 300/500V | 21.4 / 27.9 | 395 / 454 |
| RVV1 / RVV2 | 8×1.5 | 300/500V | 19.3 / 25.8 | 346 / 411 |
| RVV1 / RVV2 | 8×2.5 | 300/500V | 22.8 / 29.3 | 501 / 578 |
| RVV1 / RVV2 | 10×0.75 | 300/500V | 17.5 / 22.9 | 265 / 308 |
| RVV1 / RVV2 | 10×1.5 | 300/500V | 21.8 / 28.3 | 444 / 520 |
| RVV1 / RVV2 | 10×2.5 | 300/500V | 25.9 / 32.4 | 641 / 736 |
| RVV1 / RVV2 | 12×0.75 | 300/500V | 17.9 / 23.3 | 291 / 333 |
| RVV1 / RVV2 | 12×1.5 | 300/500V | 22.3 / 28.8 | 491 / 564 |
| RVV1 / RVV2 | 12×2.5 | 300/500V | 26.6 / 33.1 | 836 / 810 |
| RVV1 / RVV2 | 14×0.75 | 300/500V | 18.6 / 24.0 | 324 / 366 |
| RVV1 / RVV2 | 14×1.5 | 300/500V | 23.2 / 29.7 | 549 / 621 |
| RVV1 / RVV2 | 14×2.5 | 300/500V | 27.8 / 34.3 | 836 / 925 |
| RVV1 / RVV2 | 16×0.75 | 300/500V | 19.3 / 24.8 | 360 / 402 |
| RVV1 / RVV2 | 16×1.5 | 300/500V | 24.2 / 30.7 | 611 / 684 |
| RVV1 / RVV2 | 16×2.5 | 300/500V | 29.1 / 35.6 | 934 / 1025 |
| RVV1 / RVV2 | 18×0.75 | 300/500V | 21.2 / 27.7 | 418 / 481 |
| RVV1 / RVV2 | 18×1.5 | 300/500V | 25.2 / 31.7 | 676 / 749 |
| RVV1 / RVV2 | 18×2.5 | 300/500V | 30.5 / 37.0 | 1038 / 1130 |
| RVV1 / RVV2 | 20×0.75 | 300/500V | 21.6 / 28.1 | 446 / 508 |
| RVV1 / RVV2 | 20×1.5 | 300/500V | 25.8 / 32.3 | 725 / 796 |
| RVV1 / RVV2 | 20×2.5 | 300/500V | 31.2 / 37.7 | 1115 / 1203 |
