Load Binders

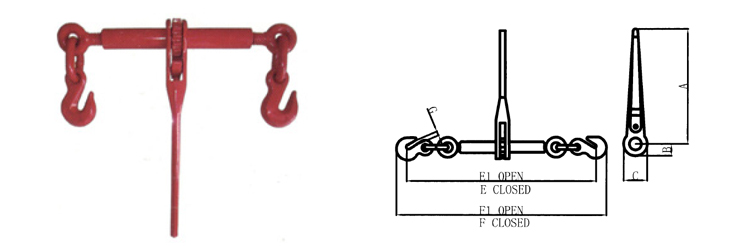

Ratchet Type Load Binders

Min-l\/lax ChainSize (in) WLL (lbs) Proof Load (lbs) Breaking Load (lbs) Weight (lbs) Handle Length (in) Dimensions(in)
A B D E E1 F G
1/4—5/16 2200 4400 7800 3.52 7.16 7.16 0.89 1.77 16.22 21.26 17.79 0.35
5/16-3/8 5400 10800 19000 10.5 13.42 13.92 1.3 2.6 22.64 30.64 25.24 0.51
3/8-1/2 9200 18400 33000 12.9 13.92 13.92 1.3 2.6 24.13 32.13 27.04 0.59
1/2-5/8 13000 26000 46000 14.38 13.92 13.92 1.3 2.6 26.45 34.45 30.07 0.74

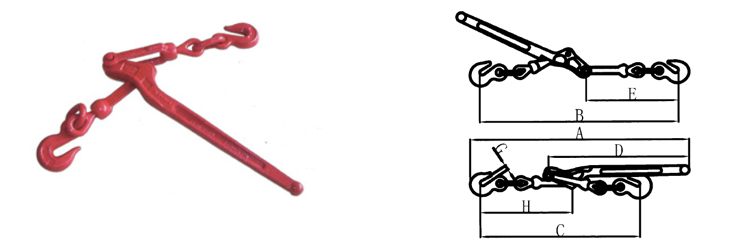

Lever Type Load Binders

Min-Max ChainSize (in) WLL (lbs) Proof Load (lbs) Breaking Load (lbs) Weight (lbs) Handle Length (in) Dimensions(in)
A B C D E H G
1/4-5/16 2200 4400 7800 3.52 11.42 18.5 17.3 14.17 11.42 8.27 8.07 0.35
5/16-3/8 5400 10800 19000 8.37 15.43 25.2 23.2 19.49 15.55 11.22 11.22 0.51
3/8-1/2 9200 18400 28000 12.11 17.24 28.5 26.38 22.05 17.64 12.99 12.2 0.59
1/2-5/8 11000 22000 44000 19.7 21 33.86 30.12 25.87 20.87 14.37 14.37 0.74
