KBK System
LEITAI KBK System

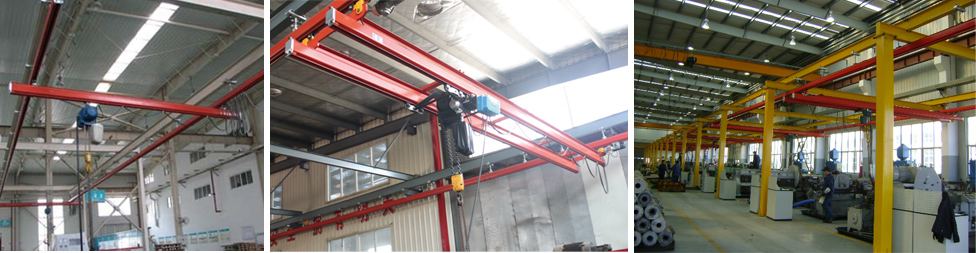

KPK Suspension monorail are the opitimum solution for linear overhead handling.
A wide range of components makes it possible to adapt the route precisely to meet structural requirements of your workshop. At the same time, the system ensures that all specific products and workplace requirments of your production facility are meet.
Transfer between suspension monorails are single girder or double girder or curver ruotation cranes.

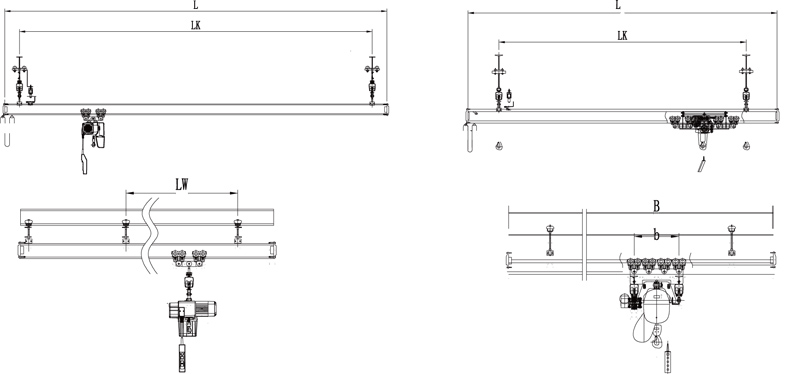

| Basic Information | Maximum Hanger Spacing of Single Girder LW | Maximum Hanger Spacing of Double Girder LW | |||||||
| Model | Load Capacity | Bending Radius | Bending Angle | 250kg | 500kg | 1000kg | 500kg | 1000kg | 2000kg |
| KBK-I | 500kg | >=1000mm | 10°~90° | 2.8m | / | / | / | / | / |
| KBK-II | 1000kg | >=1500mm | 10°~90° | 6m | 3.8m | 1.8m | / | / | / |
| KBK-III | 2000kg | >=1500mm | 10°~90° | 6.8m | 6m | 3.5m | 7.5m | 6m | 3.5m |
