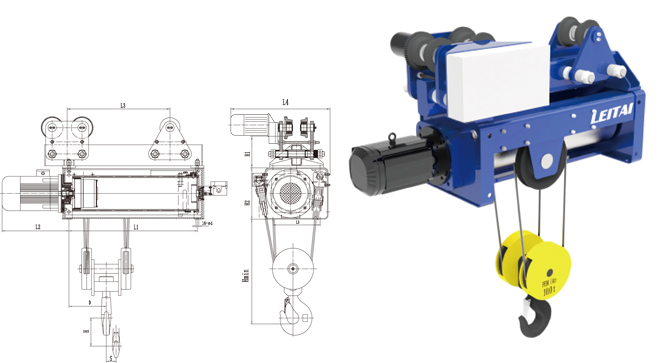

LHC Motorized Standard Room Wire Rope Hoist

LHC Motorized Standard Room Wire Rope Hoist




Capacity
(t) 		Work
Duty 		Lifting Height
(m) 		Lifting Speed
(m/min) 		Traveling
Speed
(m/min) 		Rope Reeling Lifting Motor Power
(kW) 		Travelling Motor Power
(kW)
(suspended type) 		I-beam
Track (mm) 		L1
(mm) 		L2
(mm) 		L3
(mm) 		L4
(mm) 		L5
(mm) 		H1
(mm) 		H2
(mm) 		Hmin
(mm) 		d
(mm) 		D
(mm) 		S
(mm) 		N.W
(kg) 		IP
Class
2 M4 6 7.2
7.2/0.72 		20 2/1
3
3/0.4 		0.37 116~180 458 388 268 690~730 320 241 352 600 18 160 105 385 IP44
IP54
9 553 388 363 155 400
12 648 388 458 205 415
18 838 388 648 310 450
24 1028 388 838 410 480
30 1218 388 1028 510 510
3.2 M4 6 7.2
7.2/0.72 		20 2/1
4.5
4.5/0.4 		0.37 116~180 488 412 298 700~730 320 241 352 620 18 130 110 435 IP44
IP54
9 598 412 408 165 450
12 708 412 518 220 465
18 928 412 738 325 500
24 1148 412 958 435 540
30 1368 412 1178 540 575
5 M4 6 7.8
7.8/0.78 		20 2/1
7.5
7.5/0.8 		0.6 120~180 520 512 325 750~780 360 241 392 820 22 170 115 550 IP44
IP54
9 635 512 440 175 580
12 750 512 555 230 600
18 980 512 785 345 650
24 1210 512 1015 460 690
30 1440 512 1245 570 740
3.2 M4 6 3.6
3.6/0.36 		20 4/1
3
3/0.4 		0.37 116~180 648 388 458 690~730 320 241 352 600 18 250 55 425 IP44
IP54
9 838 388 648 85 460
12 1028 388 838 110 490
15 1218 388 1028 140 520
6.3 M4 6 3.6
3.6/0.36 		20 4/1
4.5
4.5/0.4 		0.6 120~180 708 412 518 700~730 320 241 352 620 18 255 55 475 IP44
IP54
9 928 412 738 85 510
12 1148 412 958 110 550
15 1368 412 1178 140 585
10.0 M4 6 3.9
3.9/0.39 		20 4/1
7.5
7.5/0.8 		0.75 120~180 750 512 555 750~780 360 241 392 800 22 285 60 610 IP44
IP54
9 980 512 785 90 660
12 1210 512 1015 120 700
15 1440 512 1245 150 750
