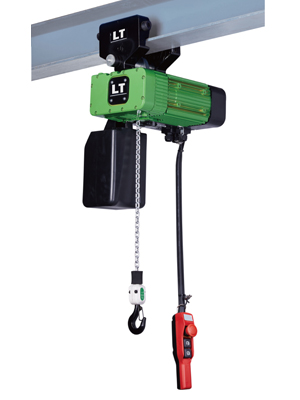

SC Series Chain Hoist with Manual Trolley

SC Series Chain Hoist with Manual T

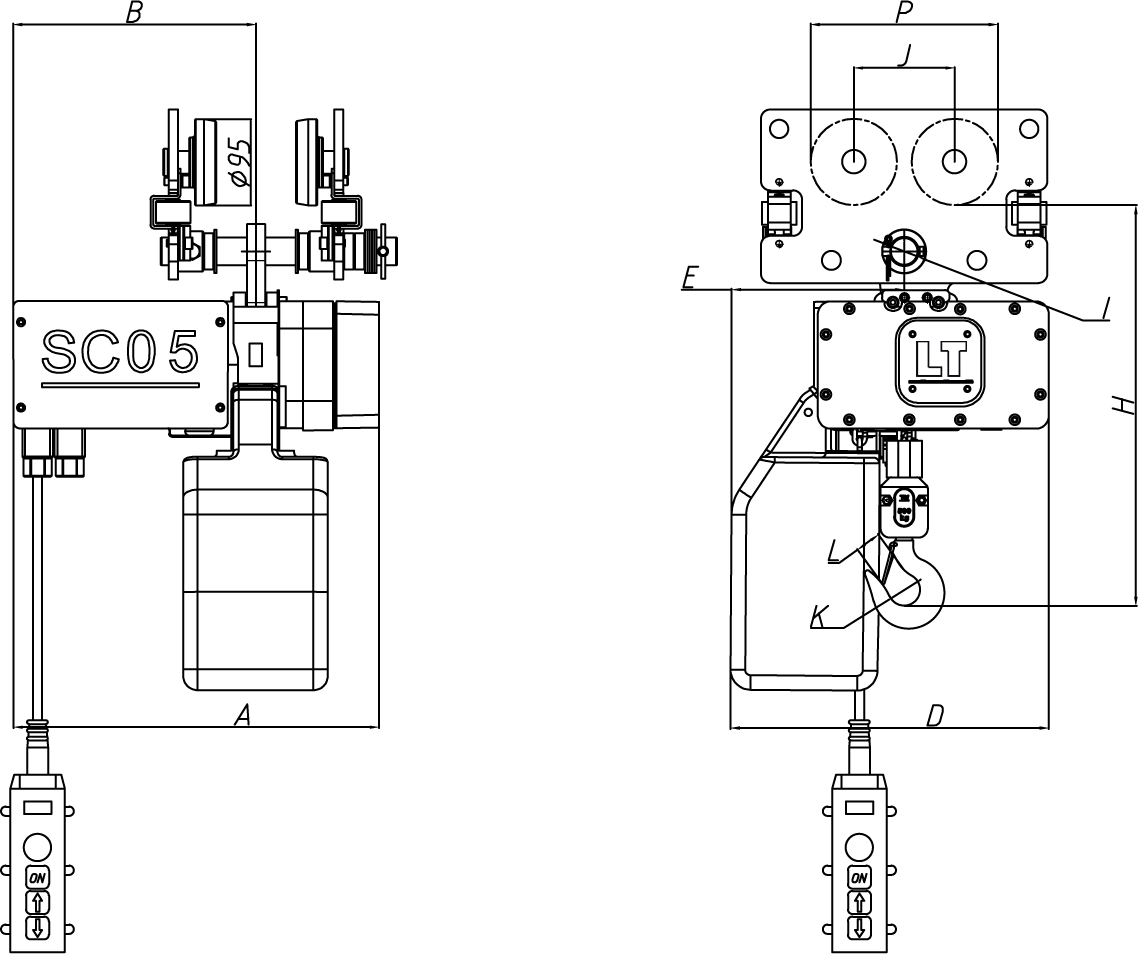

Model H A B D E I K L P J
SC0.5-01 440 400 267 350 190 φ31 φ35 28 206 110
SC01-02 515 400 267 350 10 φ31 φ42 35 206 110

Item Standard Optional
Environmental Temperature -20°C-+40°C -40°C~+80°C
IP IP55 IP66
Painting Color RAL6001/9017 Customized
Thickness 80 120, 240
Pendent Control Pendent Control with EMS Wireless Remote Control or Pendant
Control Method Contactor Control Includes the Main Contactor For Crane Manufacturersoes
Exclude the Main Contactor and Transformer
Control Voltage AC48V AC24V,AC36V,AC11 OV,AC220V
Lifting Motro Change Pole VFD
Travel Speed 50Hz 5/20m/min 10,20,25,30
60Hz 6/24m/min 12,24,30,36
VFD
Motor Power
50Hz/60Hz 		220-440V 3P
220,230,380,400,415,440 		All
Chain Galvanized
Grade8 according DIN5684 		Black Coating
Grade8 according DIN5684
Chain Guard Device Casting Multilayer Guide Chain Device Made from Hardened Spring Steel Plate
Chain Pocket Plastic Steel plate, High Strength Polyester Silk
Load Hook Block Thread Rod
- Stainless Steel
Limit Switch Lifting - EMS
Traveling - Slow Down or Stop In Both Directions
Overload protection Friction Clutch Load Cell
Safty - Horn, Sound and Light Alarm
Signal Generator - Large Font Load Display Screen, Load Display on Control Button,
Visual Signals - Can be Read On The Computer
Data Exchange - Use Computer
Cumulative Load Controller - Dedicated Control Module
Mechanical Security Installation Device According Cross Trolley,  the So Large Flange Width is Equipped with the Support Guide Wheel. Guide Wheels will Be Fixed If Flange Width is so Small
Lifting brake Spring Acting Single Disc Brake, Brake Pads Free of Asbestos Released Manually
Double brake
Data Record - Running Time Counter
Control Panel PA66 Q235


SC Chain Hoist Advanctage

Motor:
Motor performance meets JB/5317 and European standards.
Strong fan cooling system
Motor insulation class F
Protection level IP55 or above
Low temperature motor, long service life 		Brake:
CE
Friction material is asbestos free
JB/5317 and European standards.
Brake spring adopts special processing technology
Long life brake coil suction 		Overload Friction Clutch and Gearbox:
The mechanical safety clutch is installed in the gearbox to ensure the stability and reliability of the limited load
Control System:
Adopt safety voltage with reliable limit switch,make operation more safe. 		SC Chain drive
The chain drive adopts five sockets or above design, which makes the whole transmission more stable and reduces the chain steering wear
Chain:
The use of high strength carburizing chain, chain safety factor up to 5 times, wear resistance 		Surface treatment:
The whole use of spray paint treatment, also according to the special environment requirements for special anti-corrosive treatment 		Chain box:
Can choose plastic chain box, high strength polyester chain bag and iron chain box according to different lifting and low
