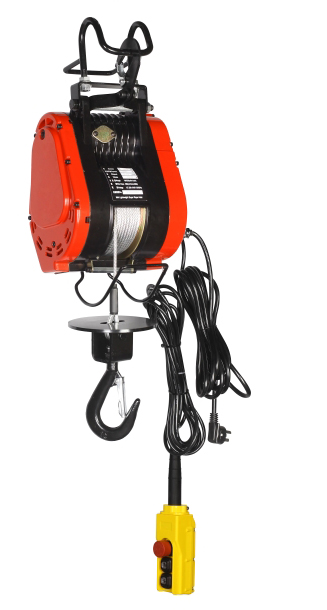

NX Mini Electric Winch

NX Mini Electric Winch

Model Capacity
(kg) 		DS Model Standard
Lifting Speed
(m/min) 		DS Model Inverter Motor Power
(kw) 		DSK Model Fast
Lifting Speed
(m/min) 		DSK Model Inverter Motor Power
(kw) 		Brake Lifting Height
(m) 		Wire Rope
(mm x m) 		Power
Cable
(m) 		Control Cable
(m) 		N.W
(kg) 		G.W
(kg) 		Packing Dimensions
(cm)
NX-100DS 100 10/30 1.5 - - Electric +
Mechanical  		44  φ4×45 4.5 6 16 19 50×30×28
NX-160DS 160 9/24 1.5 - - 29  φ5×30
NX-190DS/190DSK 190 8/21 1.5 12/34 2.5 29  φ5×30
NX-250DS/250DSK 250 7/18 1.5 11/30 2.5 29  φ5×30
NX-300DS/300DSK 300 6/15 1.5 10/27 2.5 29  φ5×30
NX-350DS/350DSK 350 5/14 1.5 9/24 2.5 19  φ6×20
NX-280DS 280 10/28 2.5 - - 59  φ5×60 20 23 55×33×31
NX-360DS 360 9/23 2.5 - - 39  φ6×40
NX-500DS 500 7/17 2.5 - - 29  φ6×30
NX-750DS 750 6/15 2.5 - - 19  φ7×20

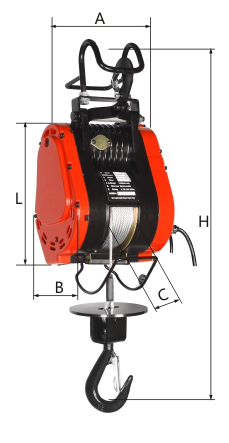

Model A
(mm) 		B
(mm) 		C
(mm) 		L
(mm) 		H
(mm)
NX100DS 246 182 65 288 630
NX160DS
NX190DS
NX250DS
NX300DS
NX280DS 270 206 95 335 690
NX360DS
NX500DS
NX750DS
