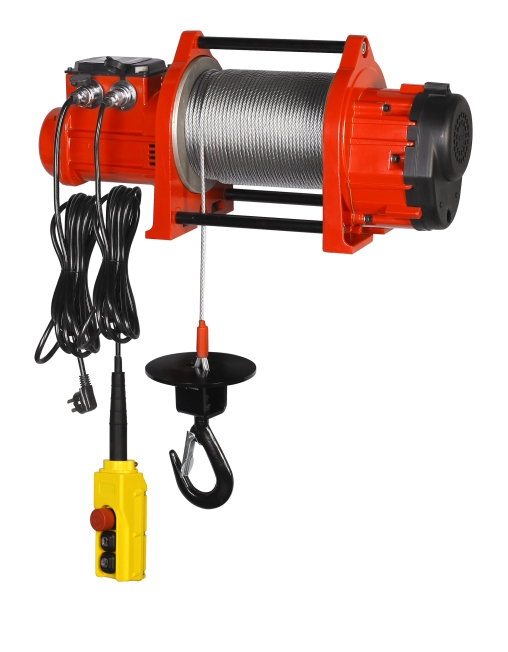

NJ Mini Electric Winch

NJ  Mini Electric Winch

Model Capacity
(kg) 		DS Model Standard
Lifting Speed
(m/min) 		DS Model Inverter Motor Power
(kw) 		DSK Model Fast
Lifting Speed
(m/min) 		DSK Model Inverter Motor Power
(kw) 		Brake Lifting Height
(m) 		Wire Rope
(mm) 		Power
Cable
(m) 		Control Cable
(m) 		N.W
(kg) 		G.W
(kg) 		Packing Dimensions
(mm)
NJ-200DS/200DSK 200 8/18 1.5 13/35 2.5 Electric +
Mechanical  		28  φ5×30 4.5 6 18 22 54×25×30
NJ-200DS/200DSK 200 8/18 1.5 13/35 2.5 68  φ5×70 22 26 60×25×30
NJ-200DS/200DSK 200 8/18 1.5 13/35 2.5 118  φ5×120 25 29 66×25×30
NJ-300DS/300DSK 300 6/15 1.5 10/26 2.5 28  φ6×30 18 22 54×25×30
NJ-300DS/300DSK 300 6/15 1.5 10/26 2.5 58  φ6×60 22 26 60×25×30
NJ-300DS/300DSK 300 6/15 1.5 10/26 2.5 58  φ6×90 25 29 66×25×30
NJ-500DS 500 7/17 2.5 - - 58  φ7×25 18 22 54×25×30
NJ-500DS 500 7/17 2.5 - - 58  φ7×45 22 26 60×25×30
NJ-500DS 500 7/17 2.5 - - 58  φ7×60 25 29 66×25×30
Model A
(mm) 		B
(mm) 		C
(mm) 		L
(mm) 		H
(mm)
NJ200DS 496 210 95 271 470
NJ200DS 550 150
NJ200DS 610 205
NJ300DS 496 95
NJ300DS 550 150
NJ300DS 610 205
NJ500DS 496 95
NJ500DS 550 150
NJ500DS 610 205

1. Permanent magnet frequency conversion technology, stable lifting and falling without shaking. Intelligent integrated control appliances can save energy by more than 30%. Electrical control 4v low voltage is safe and reliable, no worry about electric shock.
2. Overload and overheat proteuion can ensure sdfe and durable, and high and low speed can be switched  at will, which make the machine suitable tor different scenarios.
3. Optional-accurate weight display and real-time monitoring, record keeping for query, wireless control + wireless communication.
4. Overwind prevent device: when wire to the upper limit, power cut off automatically. and machine stop automatically to prevent collisions.
5. Inverse prevent device: machine has the function of preventing reverse winding, and will stop automaticaiiy when reverse winding occurs.
6. Double safety brake device: when power off,  motor slowdown immediately, mechanical Ratchet brake take action at the same time.
7. Switch line, power cord separate design, easy to Install.
3. Small button switch, operating easily.
9. Hoist occupies small volume, light weight, move easily.
10. Single-phase 110V (single-phase 220V)
11. The outermost layer of the hoisting rope is the lightest lifting capacity, but fastest in speed.
12. Using triangle hanging wheel with double wire will increase lifting capacity by 85%, but lifting speed half.
