Crane Rail Joints

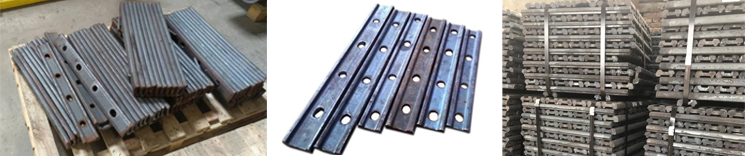

Crane Rail Fish Plate, Crane Rail Joints for P22, P24, P38, P43, P50, QU70, QU80, QU100 and GB Standard Steel Rail

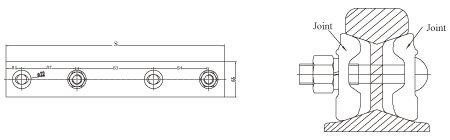

Model |
S (mm) |
S1 (mm) |
S2 (mm) |
S3 (mm) |
S4 (mm) |
S5 (mm) |
Rail Size |
FP-24 | 400 | 29 | 98 | 137 | 98 | - | P18 / P22 / P24 |
FP-30 | 490 | 36 | 128 | 127 | 128 | - | P30 |
FP-38 | 790 | 65 | 160 | 110 | 120 | - | P38 / P43 |
FT-80 | 500 | 52.5 | 121 | 138.5 | 120 | 43 | QU70 / QU80 |
