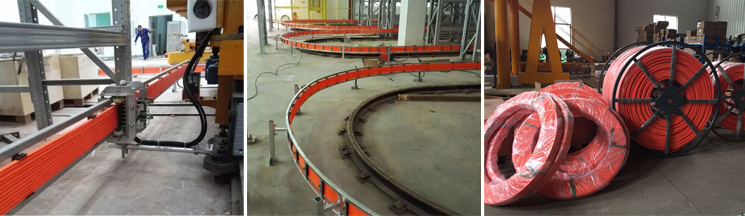

High Tro Reel System

Feature:

1.Capacity from 35 – 140 A, from 3poles to 6poles
2.Easy for transportation and installation.
3.Lower cost than enclosed conductor rail

Advantage:

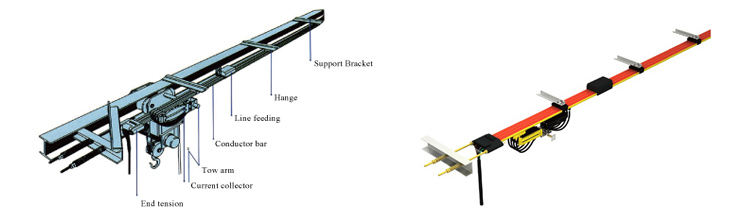

1.PVC Housing: Good material, compact design good performance.
2.Spare parts: Fire-proofing material, Good galvanized quality.
3.Collector: Nylon material , High quality and big size carbon bush, connection ear design.
4.End tension: Reforced Nylon material, High quality spring, standard screw, bolts and nuts.
5.Others: Line feed is available.

Type Poles Conductor Cross Section(mm2) Max. Current(A)
HTR-3-10/50A 3 3x10 50A
HTR-3-16/80A 3 3x15 80A
HTR-3-20/100A 3 3x20 100 A
HTR-3-25/120A 3 3x25 120 A
HTR-3-35/140A 3 3x35 140 A
HTR-4-10/50A 4 3x10+1x6 50A
HTR-4-16/80A 4 3x15+1x6 80A
HTR-4-20/100A 4 3x20+1x6 100 A
HTR-4-25/120A 4 3x25+1x6 120 A
HTR-4-45/140A 4 3x35+1x6 140 A
HTR-6-10/50A 6 6x10 50A
HTR-6-16/80A 6 6x15 80A
