Product

C track Festoon System

Feature:

1.Popular worldwide.
2.Suitable for the crane under 20 tons.
3.Outdoor is workable.

Advantage:

1.C truck: Good C shape, straight,
2.Trolley: Balling bearing design for smoothly running,

3.Spare parts: positioning pin locking design for easy installation and stable performance

Type C32*30*1.5 C40*40*2.0 C63*63*4.0
Material Galvanized steel
Weight kg/m 1.19 2 5.98

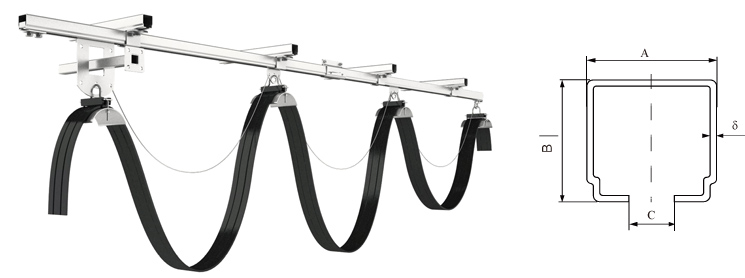

Technical data
A 32 40 63
B 30 40 63
C 12 13 18
6 1.5 2 4
Spacing Max. Cable Load
1.5m 89kg 188kg 503kg
2.0m 51kg 103kg 425kg
2.5m 39kg 73kg 302kg
3.0m 23kg 49kg 195kg
4.0m - 28kg 85kg

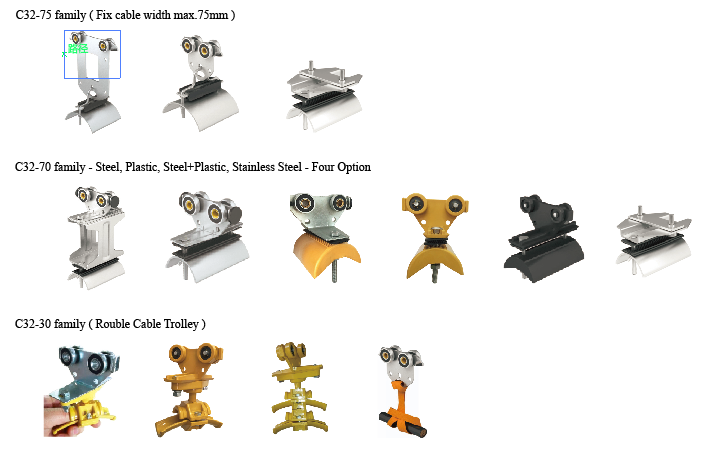

LEITAI Support different design of cable trolley to suit your different application
