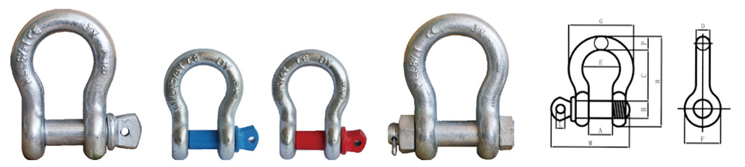

U.S Anchor Shackle

U.S. Type Anchor Shackles

Nominal Size (in.) WLL
(t) 		Weight Each (kg) Dimensions(mm)

Tolerance +/-
A B C D E F G H L M P C A
3/16 0.3 0. 03 9 65 6.35 22.4 4 85 15.2 14.2 24.9 37.3 4 06 28.4 4. 85 1.50 1.50
1/4 0.5 0. 05 11.9 7.85 28.7 6. 35 19.8 15.5 32.5 46.7 4.85 35. 1 6. 35 1.50 1.50
5/16 0.75 0.09 13.5 9.65 31.0 7.85 21.3 19.1 37.3 53.0 5.60 42.2 7. 85 3.30 1.50
3/8 1 0.14 16.8 11.2 36.6 9.65 26.2 23.1 45.2 63.0 6.35 51.5 9.65 3.30 1.50
7/16 1,5 0. 17 19.1 12.7 42.9 11.2 29.5 26.9 51.5 74.0 7.85 60.5 11.2 3. 30 1.50
1/2 2 0. 33 20.6 16.0 47.8 12.7 33.3 30.2 58.5 83.5 9.65 68.5 12.7 3.30 1.50
5/8 3.25 0. 62 26.9 19. 1 60.5 16.0 42.9 38.1 74.5 106 11.2 85.0 17.5 6.35 1.50
3/4 4.75 1.07 31 8 22.4 71.5 19. 1 51.0 46.0 89 0 126 12.7 101 20.6 6.35 1.50
7/8 6.5 1.64 36.6 25.4 84.0 22.4 58.0 53.0 102 148 12.7 114 24.6 6.35 1.50
1 8 5 2. 28 42.9 28.7 95.5 25 4 68.5 60.5 119 167 14.2 129 26.9 6.35 1.50
1-1/8 9 5 3. 36 46 0 31.8 108 29.5 74.0 68 5 131 190 16.0 142 31.8 6 35 1.50
1-1/4 12 4.31 51.5 35. 1 119 32.8 82.5 76.0 146 210 17.5 156 35. 1 6.35 1.50
1-3/8 13.5 6. 14 57.0 38. 1 133 36. 1 92.0 84.0 162 233 19. 1 174 38. 1 6.35 3.30
1-1/2 17 7. 80 60.5 41.4 146 39.1 98.5 92.0 175 254 20.6 187 41. 1 6.35 3.30
1-3/4 25 12.6 73.0 51.0 178 46.7 127 106 225 313 25.4 231 57.0 6.35 3.30
2 35 20.4 82.5 57.0 197 53.0 146 122 253 348 31.0 263 60.0 6.35 3.30
2-1/2 55 38.9 105 70.0 267 69.0 184 145 327 453 35.1 330 79.5 6.35 6.35
3 85 66 127 83 330 76 200 165 365 540 41 419 97 6.35 6.35
3-1/2 120 108 133 96 372 92 229 203 419 600 46 482 105 6.35 6.35
4 150 150 140 108 368 104 254 229 468 620 50 502 116 6.35 6.35
