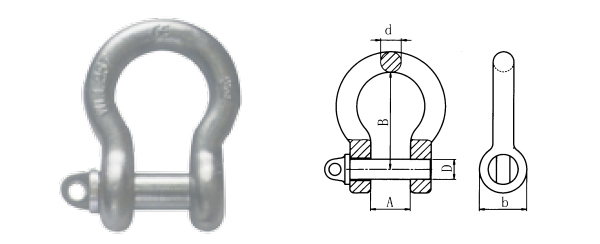

BS3032 Bow Shackle
BS3032 Bow Shackle
|
Size MM IN |
WLL (t) |
D (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Weight Per Pc |
|
| 13 | 1/2 | 1 | 22 | 59 | 16 | 32 | 13 | 0.34 |
| 16 | 5/8 | 1.5 | 28 | 73 | 19 | 38 | 16 | 0.62 |
| 19 | 3/4 | 2 | 35 | 87 | 22 | 44 | 19 | 1.05 |
| 22 | 7/8 | 3 | 38 | 101 | 25 | 51 | 22 | 1.63 |
| 25 | 1 | 4 | 44 | 116 | 28 | 57 | 25 | 2.28 |
| 29 | 1.1/8 | 5 | 51 | 130 | 32 | 64 | 29 | 3.2 |
| 32 | 1.1/4 | 6.25 | 57 | 127 | 35 | 70 | 32 | 4.45 |
| 35 | 1.3/8 | 7.5 | 60 | 159 | 38 | 76 | 35 | 5.74 |
| 32 | 1.1/2 | 9.25 | 67 | 174 | 44 | 89 | 38 | 8.51 |
