US Turnbuckles

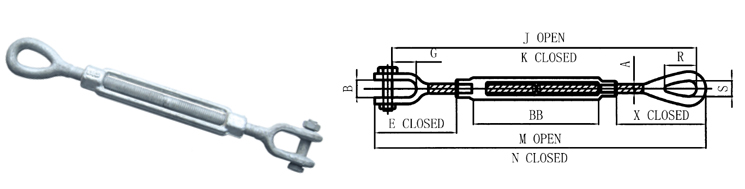

US Type Turnbuckles with Eye&Jaw

Feature:

Drop Frged, quenched and temperd,

Hot dipped galvanzied

Proof load ids 2.5 times the working load, ultimated load 5times of WLL.


Size
(in) 		WLL
(t)
Dimensions (mm)
Weight
(kg) 		A D E
Closed 		G J
Open 		K Closed M
Open 		N
Open 		R S K
Closed 		BB
14*4 0.23 0.14 6.35 11.4 40.1 15.7 288 187 307 205 19.8 865 445 101
5/16*41/2 0.36 0.23 7.85 12.7 50.5 22.1 348 221 356 242 23.8 11.1 53.0 114
3/8*6 0.54 0.36 9.65 13.7 54.0 22.1 427 275 451 299 28.4 13.4 640 152
1/2*6 1.00 0.68 12.7 16.5 70.0 26.9 490 312 520 342 36.5 18.2 82.0 152
1/2*9 1.00 0.78 12.7 16.5 70.0 26.9 642 388 673 419 36.5 18.2 820 228
1/2*12 1.00 0.94 12.7 16.5 70.0 26.9 795 465 825 495 36.5 18.2 82.0 304
5/8*6 1.59 1.07 16.0 20.1 89.0 33.3 533 349 572 388 44.4 22.3 99.0 152
5/8*9 1.59 1.44 16.0 20.1 89.0 33.3 686 425 725 464 44.4 22.3 99.0 228
5/8*12 1.59 1.64 16.0 20.1 89.0 33.3 838 501 877 541 44.4 22.3 99.0 304
3/4*6 2.36 1.81 19.1 23.9 106 38.1 576 386 625 435 53.0 25.4 119 152
3/4*9 2.36 2.15 19.1 23.9 106 38.1 729 462 777 511 53.0 25.4 119 228
3/4*12 2.36 2.69 19.1 23.9 106 38.1 881 538 930 587 53.0 25.4 119 304
3/4*18 2.36 3.18 19.1 23.9 106 38.1 1186 691 1235 739 53.0 25.4 119 457
7/8*12 3.27 3.79 22.4 28.7 123 44.5 917 567 973 624 60.4 31.7 130 304
7/8*18 3.27 4.42 22.4 28.7 123 44.5 1221 720 1278 776 60.4 31.7 130 457
1*6 4.54 4.05 25.4 34.0 140 52.5 669 466 734 531 76.0 36.5 162 152
1*12 4.54 5.08 25.4 34.0 140 52.5 974 618 1039 683 76.0 36.5 162 304
1*18 4.54 6.03 25.4 34.0 140 52.5 1279 771 1343 835 76.0 36.5 162 457
1*24 4.54 7.71 25.4 34.0 140 52.5 1583 923 1648 988 760 365 162 609
11/4*12 6.89 8.81 31.8 44.5 183 71.5 1050 681 1132 763 90.5 46.0 196 304
11/4*18 6.89 11.0 31.8 44.5 183 71.5 1354 834 1424 916 90.5 460 196 457
11/4*24 6.89 12.9 31.8 44.5 183 71.5 1659 986 1741 1068 90.5 46.0 196 609
11/2*12 9.71 13.1 38.1 52.3 200 71.5 1105 724 1200 819 103 540 219 304
11/2*18 9.71 15.9 38.1 52.3 200 71.5 1410 876 1505 972 103 54.0 219 457
11/2*24 9.71 17.8 38.1 52.3 200 71.5 1715 1029 1810 1124 103 540 219 609
13/4*18 12.7 24.4 44.5 66.0 239 86.0 1407 949 1518 1061 117 60.4 254 457
13/4*24 12.7 27.5 44.5 66.0 239 86.0 1711 1102 1823 1214 117 60.4 254 609
2*24 16.8 40.4 51.0 66.5 301 93.5 1845 1235 1980 1370 146 68.3 332 609
21/9*24 27.2 68 63.5 76.5 344 113 1925 1316 2093 1483 165 79.0 350 609
23/4*24 34.0 83 70.0 92.2 387 106 1978 1369 2172 1562 177 82.5 387 609
