US Type Turnbuckles

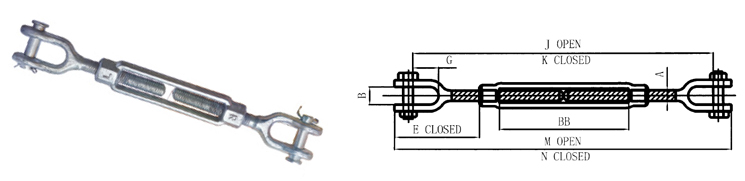

US Type Turnbuckles with Jaw and Jaw

Feature:

Drop forged, quenched and temperd

Hot Dipped Galvanzed

Proof Load: 2.5times of WLL

Ultimate Load: 5times of WLL

Size
(in) 		WLL
(t) 		Dimensions(mm)
Weight
(kg) 		A B E Closed G J
Open 		K
Closed 		M
Open 		N
Open 		BB
1/4*4 0.23 0.16 6.35 11.4 40.1 15.7 277 175 302 201 102
5/16*4.1/2 0.36 0.24 7.85 12.7 50.5 22.1 314 212 353 239 114
3/8*6 0.54 0.37 9.65 13.7 54.0 22.1 410 258 441 289 152
1/2*6 1.00 O.71 12.7 16.5 70.0 26.9 470 292 508 330 152
1/2*9 1.00 O.79 12.7 16.5 70.0 26.9 622 368 660 406 229
1/2*12 1.00 1.09 12.7 16.5 70.0 26.9 775 445 813 483 305
5/8*6 1.59 1.23 16.0 20.1 89.0 33.3 509 325 562 378 152
5/8*9 1.59 1.56 16.0 20.1 89.0 33.3 662 401 715 454 229
5/8*12 1.59 1.77 16.0 20.1 89.0 33.3 814 478 867 530 305
3/4*6 2.36 1.86 19.1 23.9 106 38.1 546 356 612 422 152
3/4*9 2.36 2.48 19.1 23.9 106 38.1 699 432 765 498 229
3/4*12 2.36 2.98 19.1 23.9 106 38.1 851 508 917 574 305
3/4*18 2.36 3.64 19.1 23.9 106 38.1 1156 660 1222 726 457
7/8*12 3.27 3.71 22.4 28.7 123 44.5 892 543 967 618 305
7/8*18 3.27 4.89 22.4 28.7 123 44.5 1197 675 1272 770 457
1*6 4.54 4.62 25.4 34.0 140 52.5 628 425 713 510 152
1*12 4.54 5.96 25.4 34.0 140 52.5 933 577 1018 662 305
1*18 4.54 6.87 25.4 34.0 140 52.5 1237 729 1322 814 457
1*24 4.54 8.20 25.4 34.0 140 52.5 1542 882 1627 967 610
1-1/4*12 6.89 9.34 31.8 44.5 183 71.5 1012 644 1119 750 305
1-1/4*18 6.89 11.2 31.8 44.5 183 71.5 1317 796 1423 903 457
1-1/4*24 6.89 12.8 31.8 44.5 183 71.5 1622 948 1728 1055 610
1-1/2*12 9.71 13.9 38.1 52.3 200 71.5 1054 673 1181 800 305
1-1/2*18 9.71 16.7 38.1 52.3 200 71.5 1359 826 1486 953 457
1-1/2*24 9.71 18.9 38.1 52.3 200 71.5 1664 978 1791 1105 610
1-3/4*18 12.7 24.5 44.5 66.0 239 86.0 1356 899 1503 1046 457
1-3/4*24 12.7 28.7 44.5 66.0 239 86.0 1661 1051 1808 1198 610
2*24 16.8 42.8 51.0 66.5 301 93.5 1766 1157 1949 1339 610
2-1/2*24 27.2 75 63.5 76.5 344 113 1854 1244 2087 1478 610
2-3/4*24 34.0 90 70.0 92.2 387 106 1899 1289 2172 1562 610
