Commercial Turnbuckles
Commercial Turnbuckles
|

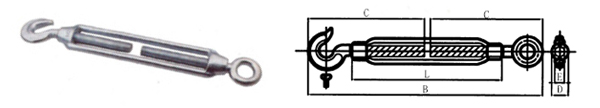

Size (mm) |
WLL (kg) |
Dimensions(mm) | ||||||
| B | C | D | E | F | L | Weight (lbs) | ||
| 6x100 | 100 | 145 | 215 | 12 | 10 | 6 | 100 | 0.35 |
| 8x125 | 200 | 185 | 280 | 14 | 12 | 8 | 125 | 0.53 |
| 10x150 | 300 | 210 | 325 | 16 | 14 | 9 | 150 | 0.79 |
| 12x200 | 500 | 275 | 430 | 19 | 18 | 11 | 200 | 1.41 |
| 16x250 | 1000 | 345 | 540 | 23 | 24 | 14 | 250 | 3.18 |
| 20x300 | 1500 | 435 | 670 | 28 | 26 | 18 | 300 | 4.96 |
| 22x330 | 2200 | 480 | 740 | 34 | 32 | 20 | 330 | 7.79 |
| 24x350 | 3000 | 555 | 830 | 36 | 36 | 21 | 350 | 9.58 |
