JIS Frame Turnbuckles

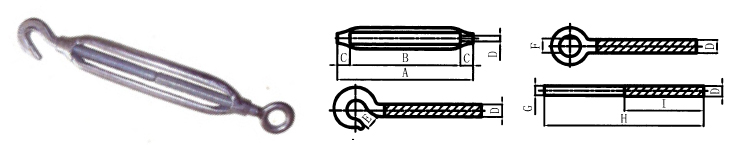

JIS Type Frame Turnbuckles

Size(D) Body Only Eye&Eye Hook&Eye Hook&Hook WithStubs
A B C T.L W/PC F T丄 W/PC T.L W/ PC E T丄 W/ PC H I G W/PC
mm in mm in mm mm t lbs mm t lbs t lbs mm t lbs mm mm mm lbs
6 1/4 100 4 78 11 1 2.21 10 0.1 0.3 0.04 0.25 9 0.04 0.25 80 50 5.3 11.69
8 5/16 125 5 100 12.5 1.2 2.65 12 0.2 0.5 0.08 0.48 9 0.08 0.47 100 63 6.9 15.23
9 3/8 150 6 120 12.5 1.5 3.31 16 0.5 0.7 0.15 0.65 11 0.15 0.64 130 75 8.3 18.31
12 1/2 200 8 164 18 2 4.41 20 2 1.3 0.35 1.29 16 0.35 1.26 150 100 11.2 24.71
16 5/8 250 10 202 21.5 3 6.62 22 3 2.4 0.7 2.32 19 0.7 2.27 180 125 14.2 31.33
19 3/4 300 12 250 25 4 8.83 28 4 3.9 1 3.93 20 1 3.91 220 150 17.2 37.95
22 7/8 325 13 269 28 5 11.03 33 5 5.6 1.5 5.69 21 1.5 5.74 250 165 20.3 44.79
25 1 350 14 285 32.5 6 13.24 35 6 8.4 2 8.32 26 2 8.21 270 175 23.3 51.41
32 1-1/4 400 16 310 45 8 17.65 36*70 10 16.8 3 16.6 34 3 16.4 300 200 29 63.99
38 1-1/2 450 18 350 55 10 22.07 40*80 15 29.8 4 28.2 35 4 48.5 330 225 38 83.85
