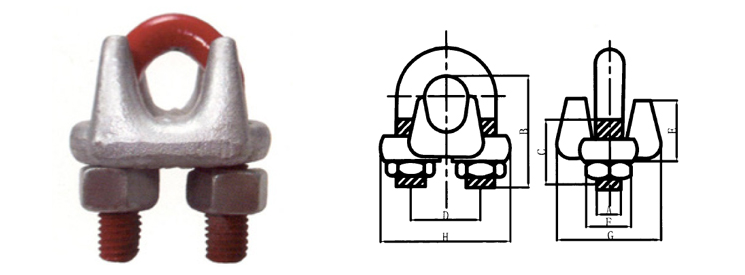

US Drop Forged Wire Rope Clips

US type Drop Forged Wire Rope Clips

Size Dimensions (mm) Weight
(in) A B C D E F G H 100pcs (lbs)
1/8 0.22 0.72 0.44 0.47 0.37 0.38 0.81 0.99 6
3/16 0.25 0.97 0.56 0.59 0.50 0.44 0.94 1.18 10
1/4 0.31 1.03 0.5 0.75 0.66 0,56 1.19 1.43 19
5/16 0.38 1.38 0.75 0.88 0.73 0.69 1.31 1.66 28
3/8 0.44 1.5 0.75 1 0.91 0.75 1.63 1.94 48
7/16 0.5 1.88 1 1.19 1.13 0.88 1.91 2.28 78
1/2 0.5 1.88 1 1.19 1.13 0.88 1.91 2.28 80
9/16 0.56 2.25 1.25 1.31 1.34 0.94 2.06 2.5 109
5/8 0.56 2.25 1.25 1.31 1.34 0.94 2.06 2.5 110
3/4 0.62 2.75 1.44 1.5 1.39 1.06 2.25 2.84 142
7/8 0.75 3.12 1.62 1.75 1.58 1.25 2.44 2.16 212
1 0.75 3.5 1.81 1.88 1.77 1.25 2.63 3.47 252
11/8 0.75 3.88 2 2 1.91 1.25 2.81 3.59 283
11/4 0.88 4.44 2.22 2.34 2.17 1.44 3.13 4.13 438
13/8 0.88 4.44 2.22 2.34 2.31 1.44 3.13 4.19 442
11/2 0.88 4.94 2.38 2.59 2.44 1.44 3.41 4.44 544
15/8 1 5.31 2.62 2.75 2.66 1.63 3.63 4.75 704
13/4 1.13 5.75 2.75 3.06 2.92 1.81 3.81 5.24 934
2 1.25 6.44 3 3.38 3.03 2 4.44 5.88 1300
21/4 1.25 7.13 3.19 3.88 3.19 2 4.56 6.38 1600
21/2 1.25 7.69 3.44 4.13 3.69 2 4.69 6.63 1900
23/4 1.25 8.31 3.56 4.38 4.88 2 5 6.88 2300
3 1.5 9.19 3.88 4.75 4.44 2.38 5.31 7.61 3100
31/2 1.5 10.75 4.5 5.5 6 2.38 6.19 8.38 4000

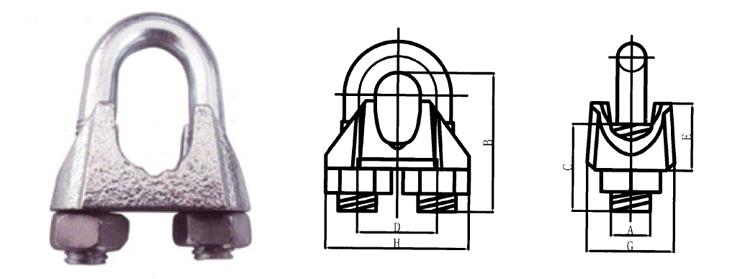

US Type Galv Malleable Wire Rope Clips

Size (in) Diemension (mm) Weight 100pcs (lbs)
A B C D E G H
1/8 1/4 13/16 1/2 1/2 7/16 1/2 15/16 3.3
3/16 1/4 31/32 5/8 9/16 1/2 9/16 11/16 6.6
1/4 5/16 17/32 7/8 11/16 5/8 11/16 13/8 11.42
5/16 5/16 17/32 7/8 11/16 11/16 11/16 13/8 13.1
3/8 3/8 15/8 1 7/8 13/16 7/8 15/8 22
7/16 3/8 15/8 1 7/8 13/16 15/16 15/8 25.2
1/2 7/16 2 11/4 1 11/16 1 17/8 38.4
9/16 1/2 25/16 115/32 13/16 13/16 11/8 23/16 49.73
5/8 1/2 25/16 115/32 13/16 15/16 11/8 23/16 54.76
3/4 9/16 29/16 13/4 111/32 11/2 11/4 27/16 80.53
7/8 5/8 31/16 113/16 15/8 13/4 13/4 27/8 117.35
1 5/8 33/8 21/16 13/4 115/16 2 3 150.6
11/8 3/4 37/8 23/16 21/16 23/16 21/8 37/16 243
11/4 3/4 37/8 23/16 21/16 23/8 21/2 37/16 262
13/8 7/8 41/2 2 29/16 27/8 31/8 43/16 456
11/2 7/8 41/2 2 29/16 3 31/4 41/4 512
