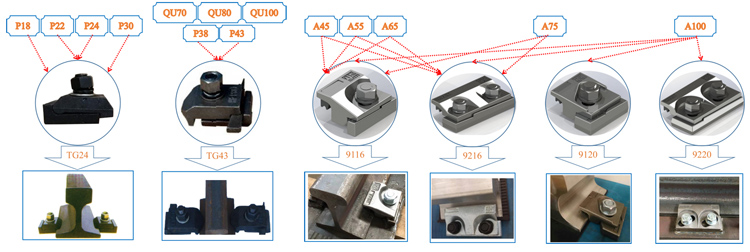

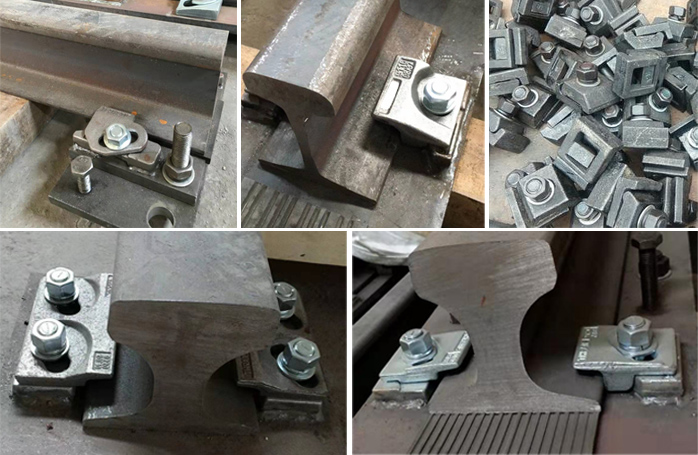

Crane Rail Clamp

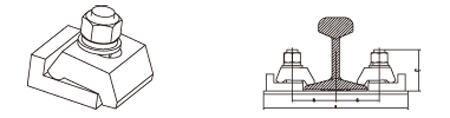

TGS Series for P18, P22, P24, P30 Light Duty Crane Rail

Model Rail Size a
(mm) 		B
(mm)
TGS22 P22 64 204
TGS24 P24 63 202
TGS30 P30 71 218
CGWK38 P38 74 224
CGWK43 P43 74 224
CGWK50 P50 83 242
CGWK70 QU70 77 230
CGWK80 QU80 82 240

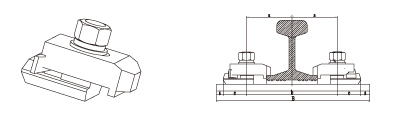

TG Series for P38, P43, QU70, QU80, QU100 Heavy Duty Crane Rail

Model Rail Size a
(mm) 		b
(mm) 		2e
e=62
(mm) 		2s
s=10(5)
(mm) 		B
B=b+2e+2s
(mm)
TG38 P38 97 194 124 20(10) 338(328)
TG43 P43 97 194 338(328)
TG50 P50 106 212 356(346)
TG60 P60 115 230 374(364)
TG70 QU70 100 200 344(334)
TG80 QU80 105 210 354(344)
TG100 QU100 115 230 374(364)
TG120 QU120 125 250 394(384)

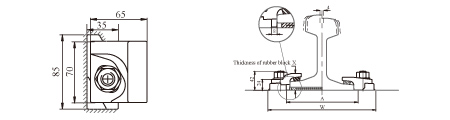

GTX Series for P type Crane Rail and A type Crane Rail

Model Rail Size A
(mm) 		Min.W
(mm) 		X1 with Pad
(mm) 		X1 w/o Pad
(mm)
GTX38 P38 114 214 14 21
GTX43 P43 114 214
GTX50 P50 132 232
GTX70 QU70 120 220
GTX80 QU80 130 230
GTX55 A55 150 250
GTX65 A65 175 275
GTX75 A75 200 300
GTX100 A100 200 300

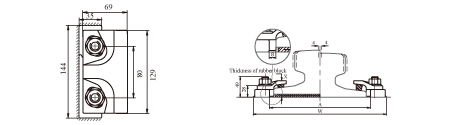

GTXD Series for P type Crane Rail and A type Crane Rail

Model Rail Size A
(mm) 		Min.W
(mm) 		X1 with Pad
(mm) 		X1 w/o Pad
(mm)
GTXD43 P43 114 214 14 21
GTXD50 P50 132 232
GTXD70 QU70 120 220
GTXD80 QU80 130 230
GTXD75 a75 200 300
GTXD100 A100 200 300
GTXD120 A120 200 300
