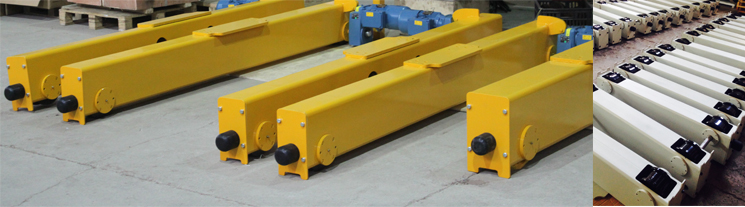

Hollow Shaft End Carriage

Leitai Hollow Shaft End Carriage Feature:

Heavy Duty
Popular around the world.
The wheel raw material is forced
The structure is made by hollow profile.
All machinery for the connection surface and shaft is made in one time, one machine to make the two wheel is in the same line, and the motor wheel be 90° connection.
All motor and wheel is tested before delivery

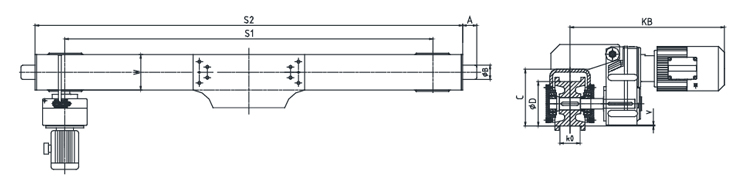

ΦD
(mm) 		S1
(mm) 		S2
(mm) 		A
(mm) 		ΦB
(mm) 		W
(mm) 		C
(mm) 		K0
(mm) 		Weight
(kg)
125 1500 1736 50 60 150 212.5 65 84
2000 2336 104
2500 2836 124
3000 3336 164
3500 3836 184
160 1500 1766 80 80 150 270 65 100
2000 2266 124
2500 2766 147
3000 3266 171
3500 3766 194
200 1500 1816 80 80 200 325 75 159
2000 2316 196
2500 2816 233
3000 3316 270
3500 3816 307
250 1500 1866 90 100 200 375 80 179
2000 2366 220
2500 2866 261
3000 3366 302
3500 3866 343
320 2500 2940 90 100 230 435 80 456
3000 3440 509
3500 3940 563
4000 4440 616
4500 4940 670
400 2500 3020 100 120 250 540 85 678
3000 3520 754
3500 4020 831
4000 4520 907
4500 5020 984
