Single Girder Overhead Crane

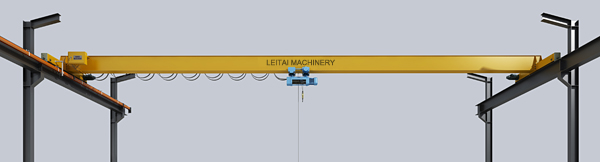

LEITAI EOT Single Girder Overhead Crane

Main Features:
1. Single girder overhead crane follow FEM standard.
2. Design and fabricate the main girder which combines light weight construction with heavy weight strength, power and durability.
3. The different design of hoist leads to optimization of the work area to the users benefit.
4. Provide the crane with necesary safety device, like load limited switch, rotational limited switch, cross limited switch.

Capacity 2T 3.2T

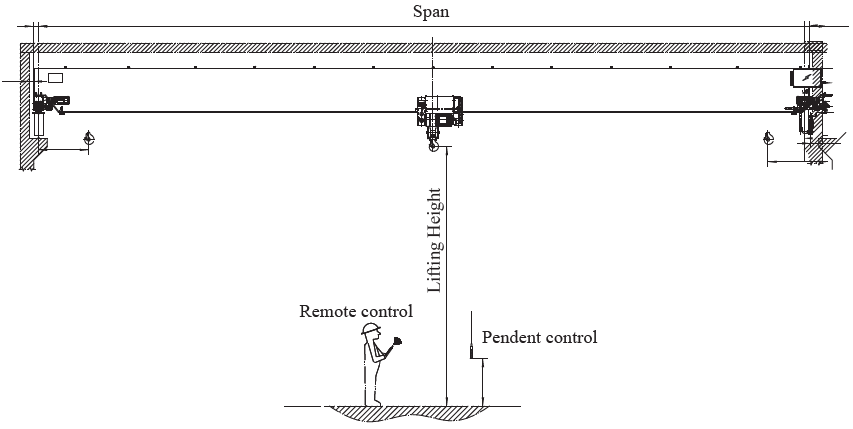

Span m 10.5 14 17.5 21 24.5 10.5 14 17.5 21 24.5
Lifting Speed m/min 5/0.8 5/0.8
Trolley Speed 5.0/20 5.0/20
Long Travel Speed 8/32 8/32
Lifting Motor kW 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45
Trolley Motor 0.64x1 0.64x1 0.64x1 0.64x1 0.64x1 0.64x1 0.64x1 0.64x1 0.64x1 0.64x1
Long Travel Motor 0.37x2 0.37x2 0.37x2 0.37x2 0.37x2 0.37x2 0.37x2 0.37x2 0.55x2 0.55x2
Crane Power 4.58 4.58 4.58 4.58 4.58 4.58 4.58 4.58 4.94 4.94
Hoist kg 360 360 360 360 360 363 363 363 363 363
End Carriage 230 270 310 350 390 230 270 310 350 390
Long Travel Motor 28 28 28 28 28 28 28 28 32 32
Girder 920 1380 2140 3020 4210 970 1720 2520 3450 5110
Long Travel Control Panel 24 24 24 24 24 24 24 24 24 24
Power Supply System 53.5 69.3 85.2 101.1 117.0 53.5 69.3 85.2 101.1 117.0
Total Crane Weight 1615.5 2131.3 2947.2 3883.1 5129.0 1668.5 2474.3 3330.2 4320.1 6036.0
Max.Wheel Load KN 14.7 16 18 20.4 24.3 20.8 22.8 24.8 27.3 31.4
Wheel Dia. 125 125 125 125 125 125 125 125 125 125
Crane Wheel Qty. Pcs 4 4 4 4 4 4 4 4 4 4
Recommended Crane Rail 50×30 50×30 50×30 50×30 50×30 50×30 50×30 50×30 50×30 50×30
Capacity 5T 10T
Span m 10.5 14 17.5 21 24.5 10.5 14 17.5 21 24.5
Lifting Speed m/min 5/0.8 5/0.8
Trolley Speed 5.0/20 5.0/20
Long Travel Speed 8/32 8/32
Lifting Motor kW 6.1/1 6.1/1 6.1/1 6.1/1 6.1/1 9.5/1.5 9.5/1.5 9.5/1.5 9.5/1.5 9.5/1.5
Trolley Motor 0.64x1 0.64x1 0.64x1 0.64x1 0.64x1 0.96x1 0.96x1 0.96x1 0.96x1 0.96x1
Long Travel Motor 0.55x2 0.55x2 0.55x2 0.55x2 0.75x2 0.75x2 1.1x2 1.1x2 1.1x2 1.1x2
Crane Power 7.84 7.84 7.84 7.84 8.24 11.96 12.66 12.66 12.66 12.66
Hoist kg 435 435 435 435 435 846 846 846 846 846
End Carriage 300 348 394 442 488 480 555 630 820 905
Long Travel Motor 44 44 44 44 46 68 68 74 74 74
Girder 1150 2300 2950 4070 5920 1540 2510 3730 5160 7430
Long Travel Control Panel 24 24 24 24 24 24 24 24 24 24
Power Supply System 53.4 69.5 85.6 101.7 117.8 55.7 72 89 105.6 122
Total Crane Weight 2006.4 3220.5 3932.6 5116.7 7030.8 3013.7 4075 5393 7029.6 9401
Max.Wheel Load KN 30.6 33.5 35.2 38.1 42.8 58.7 61.4 64.7 68.6 74.5
Wheel Dia. 160 160 160 160 160 200 200 200 250 250
Crane Wheel Qty. Pcs 4 4 4 4 4 4 4 4 4 4
Recommended Crane Rail 50×30 50×30 50×30 50×30 50×30 50×30 50×30 50×30 60×40 60×40
