Single Girder Gantry Crane
LEITAI Single Girder Gantry Crane
Main Features:
1. Single girder gantry crane follow FEM standard.
2. The main girder can be box type and lattices type which can windproof and low weight
3. Use hollow shaft end carriage design with vertical gear motor, which is space saving and long service life.
4. The control panel, gear motor have rainproof cover which can achieve higher IP class.
5. Except load limited switch, rotational limited switch, cross limited switch, Nante can offer storm locker for strong wind outdoor area.
| Capacity | 3.2T | 5T | 10T | 16T | |||||||||||||||||
| Span | m | 10 | 15 | 20 | 25 | 30 | 10 | 15 | 20 | 25 | 30 | 10 | 15 | 20 | 25 | 30 | 10 | 15 | 20 | 25 | 30 |
| Cantilever | m | 3 ~ 7 | 3 ~ 7 | 3 ~ 7 | 3 ~ 7 | ||||||||||||||||
| Height of Lifting | m | 6 ~ 15 | 6 ~ 15 | 6 ~ 15 | 6 ~ 15 | ||||||||||||||||
| Lifting Speed | m/min | 5/0.8 | 5/0.8 | 5/0.8 | 4/0.66 | ||||||||||||||||
| Trolley Speed | 5~20 | 5~20 | 5~20 | 5~20 | |||||||||||||||||
| Bridge Speed | 0-20, 0-32, 0-40 | 0-20, 0-32, 0-40 | 0-20, 0-32, 0-40 | 0-20, 0-32, 0-40 | |||||||||||||||||

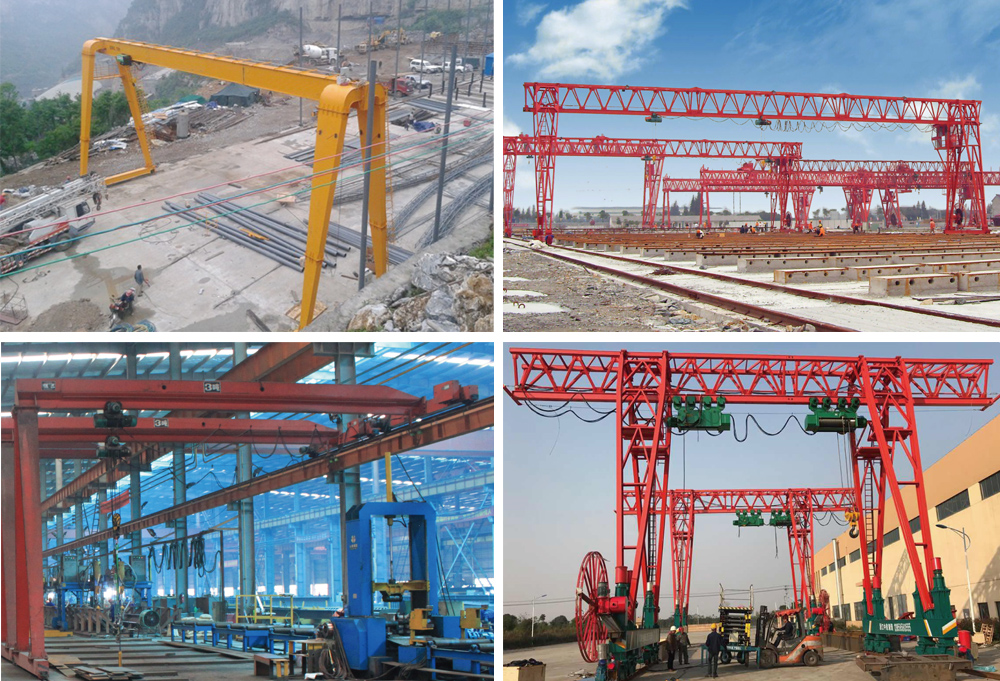

Single Girder Box Type Gantry Crane
Single Girder Truss Type Gantry Crane
