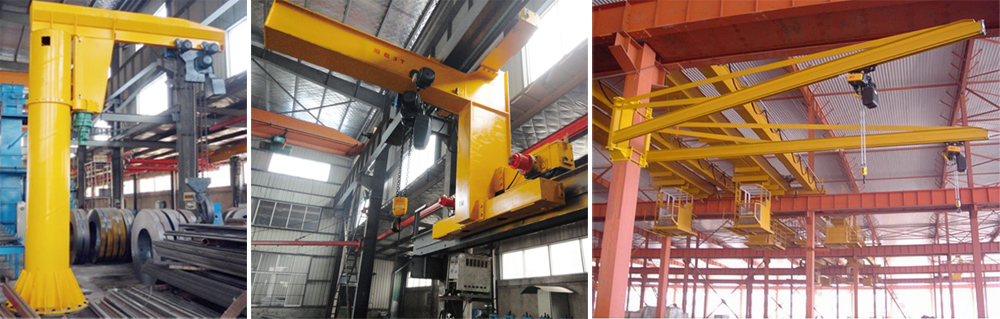

Pillar type Jib Crane

LEITAI Jib Crane


Capacity 500kg 1000kg 2000kg 3000kg 5000kg

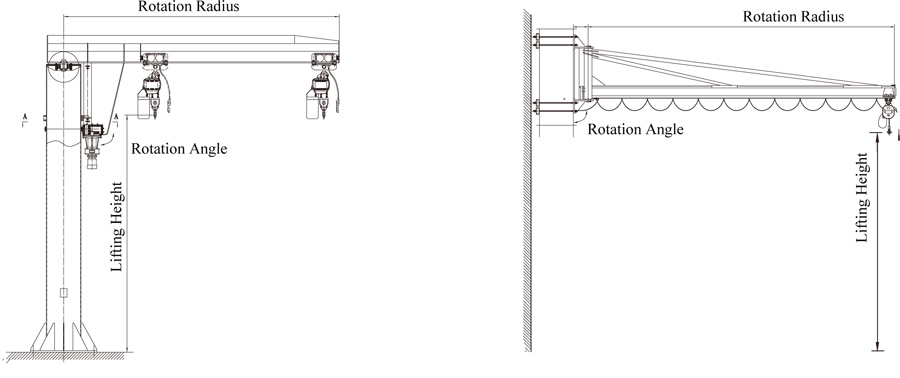

Rotation Radius m 2 ~ 8 2 ~ 6 2 ~ 6 2 ~ 8 2 ~ 8
Height of Lifting m 2 ~ 10 2 ~ 10 2 ~ 10 2 ~ 10 2 ~ 10
Rotational Angle m 180°, 270°, 360° 180°, 270°, 360° 180°, 270°, 360° 180°, 270°, 360° 180°, 270°, 360°
Control Method
Pendent or Remote control
Rotation Method
Manual or Motorized Motorized
Lifting Speed m/min Single Speed: 10 or 4
Double Speed: 10/2.5 or 4/1 		Single Speed: 10 or 5
Double Speed: 10/2.5 or 5/1.25 		Single Speed: 8 or 5
Double Speed: 8/2 or 5/1.25 		Single Speed: 5
Double Speed: 5/1.25 		Single Speed: 2.5
Double Speed: 2.5/0.63
Trolley Speed 0~20 0~20 0~20 0~20 0~20
Rotation Speed 0.4~0.8 0.4~0.8 0.4~0.8 0.4~0.8 0.4~0.8
